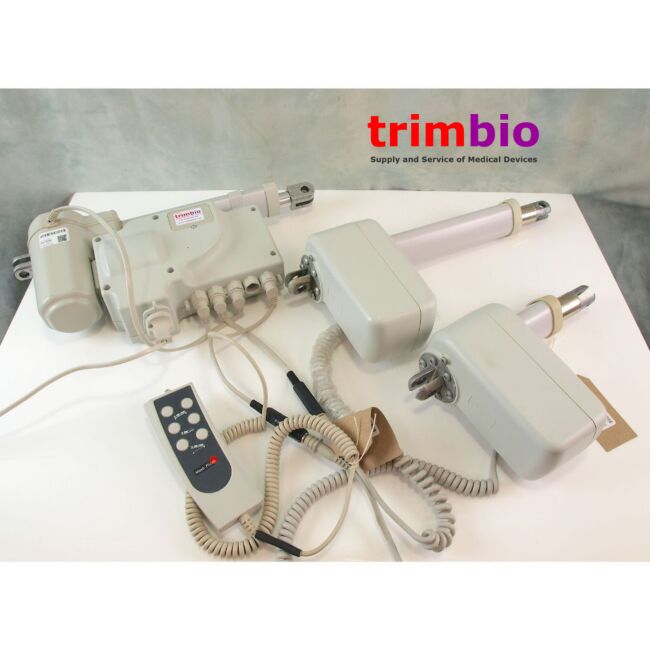

Umec NB3080007A with V60 main motor & 2 V8E motors complete kit with hand controller

Umec NB308007A, V60 main motor & 2 V8E motors complete kit with hand controller

Tested - fully functional. Note glue and tape repair in one of the motor connectors. Repair on hand controller cable. Please see images.

Tested.Fully functional. Please note kit came from a medical couch. 1st motor was for lifting the couch. 2nd was for the head section and 3rd was from tilting the couch.

Please see images.

Control Box

Umec NB308007A No 648 36 / 2013
Primary 230V 50Hz
Secondary 24V 150VA IP54

Main motor V60 NV106014A
No 2464 36 / 2013
Load max push : 6000N / Pull : 4000N
24V 120VA IP54
Dimensions:(L) 45 cm x (W)11 cm x (H) 22 cm
Weight: 5.4kg (Including the control box. Please note control box can be de-attached from the motor if required).
In stroke: 42cm - Out stroke: 62cm Stroke: 20cm

Head motor V8E No 2 221 Seud C Auzon F-43390
12787 H 27 / 2010
24V 120VA F: 6000N IPX4
Double insulation
Body: 34 cm Spigot:3.5 cm D: 1.2 cm
In stroke: 42 cm - Out stroke: 62 cm Stroke: 20 cm
Weight: 3.3 kg
Cable length : 63cm
Dimensions(L): 45 cm x (W) 11 cm x (H) 19 cm

Tilt motor
V8E Seud C Auzon F-43390
No 1353 12764F 23 / 2010
24V 120VA IPX4
Dimensions(L) 31 cm x (W) 10 cm x (H) 19 cm
Weight: 2.4 kg
Cable length : 56 cm
Body: 19 cm , Spigot: 3.5 cm D: 1.2 cm , In stroke: 27 cm , Out Stroke: 32 cm , Stroke: 5 cm

Made in France.
