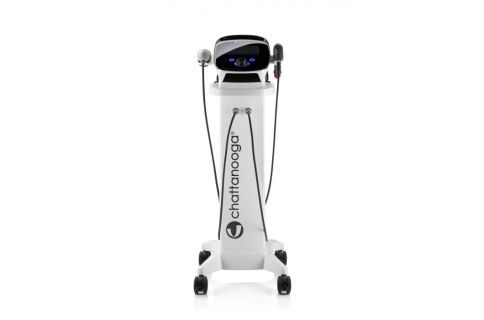

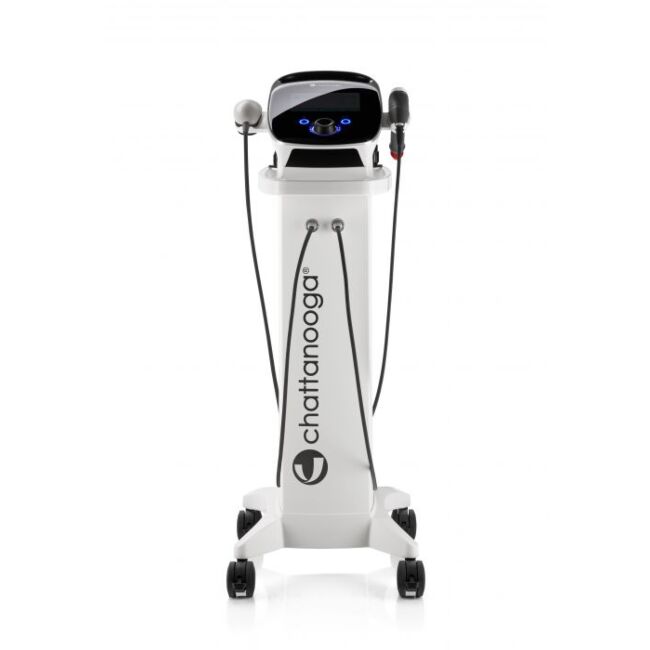

Intelect Radial Pressure Wave Shockwave 2 Unit
The new Intelect® RPW 2 combines streamlined design with ergonomics and patient-comfort with ease-of-use resulting into the most compact clinical unit currently on the market.
The Intelect® RPW 2 allows for the treatment of indications with radial, pneumatically-generated, low-energy acoustic waves, or ‘pressure pulses’.
The applied pressure pulse propagates radially within the tissue, generating a therapeutic effect.
The V-ACTOR® HF optional hand piece allows mechanical vibration, for vibration massage.
Indications:
- Achilles Tendinopathy
- Disorders of Tendons Insertions
- Pain & Inflammation in Orthopaedic Conditions
- Plantar Fasciitis
- Pulse Vibration Massage
Recommended treatment guidelines:
- Localize the painful areas you plan to treat
- Select most appropriate transmitters based on treatment goal and targeted tissue
- Apply ultrasound water based gel on the skin overlying the treatment area
- Always start with lower level of intensity
- Perform a post-treatment test to see for better function and decreased in pain
Supplied as standard:
- Intelect RPW 2 Falcon handpiece, including 2x projectile; 2x guiding tube; 1 cleaning brush, 1x wrench; 1x allen key
- D20-S Transmitter Black
- Ro40 Transmitter
Intelect Radial Pressure Wave Shockwave 2 Unit comes with 3-year warrantyt (Terms & conditions apply).
Warranty for the handpiece is 2 years or 3 million shocks whatever occurs first.
Warranty for the shock transmitters is 1 year or 1 million shocks whatever occurs first.
- We accept Mastercard, VISA & AMEX
- Finance options available for orders over £1000 + VAT
The new Intelect® RPW 2 combines streamlined design with ergonomics and patient-comfort with ease-of-use resulting into the most compact clinical unit currently on the market.
The Intelect® RPW 2 allows for the treatment of indications with radial, pneumatically-generated, low-energy acoustic waves, or ‘pressure pulses’.
The applied pressure pulse propagates radially within the tissue, generating a therapeutic effect.
The V-ACTOR® HF optional hand piece allows mechanical vibration, for vibration massage.
Indications:
- Achilles Tendinopathy
- Disorders of Tendons Insertions
- Pain & Inflammation in Orthopaedic Conditions
- Plantar Fasciitis
- Pulse Vibration Massage
Recommended treatment guidelines:
- Localize the painful areas you plan to treat
- Select most appropriate transmitters based on treatment goal and targeted tissue
- Apply ultrasound water based gel on the skin overlying the treatment area
- Always start with lower level of intensity
- Perform a post-treatment test to see for better function and decreased in pain
Supplied as standard:
- Intelect RPW 2 Falcon handpiece, including 2x projectile; 2x guiding tube; 1 cleaning brush, 1x wrench; 1x allen key
- D20-S Transmitter Black
- Ro40 Transmitter
Intelect Radial Pressure Wave Shockwave 2 Unit comes with 3-year warranty (Terms & conditions apply).
Warranty for the handpiece is 2 years or 3 million shocks whatever occurs first.
Warranty for the shock transmitters is 1 year or 1 million shocks whatever occurs first.
| Technical | POWER: 230V AC 50-60Hz 350VA DIMENSIONS: 41x110x42.5cm WEIGHT: 30kg COMPRESSED AIR OUTPUT: 0.3-5.0 bar POWER INCREMENT SETTINGS: 0.1 bar PULSE AMPLITUDE: Approx 2mm at 3 bar, idling (without coupling) PULSE WIDTH: Approx 6-12ms PULSE FREQUENCY: FALCON® handpiece 1-21Hz for RPW, V-ACTOR® handpiece 1-50Hz for vibration MODE: Single pulse or continuous USER INTERFACE: 7 inch, 800x480 pixels color graphic capacitive touch screen CONFORMITY: Complies with the applicable standardsEN/IEC 60601-1, CAN/CSA-C22.2 No.601.1, UL Std. No 60601-1. CLASSIFICATION ACCORDING TO MDD: Class IIa device 93/42 60601-1 |
|---|---|
| Product Dimensions | 41cm x 110cm x 42.5cm |
| Net Weight | 30Kg |
