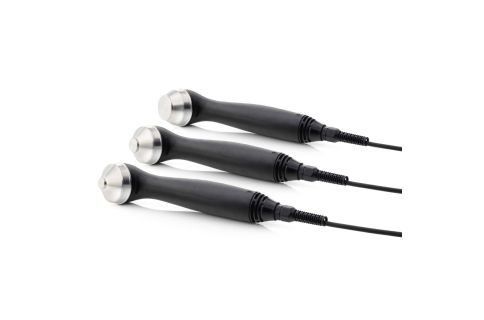

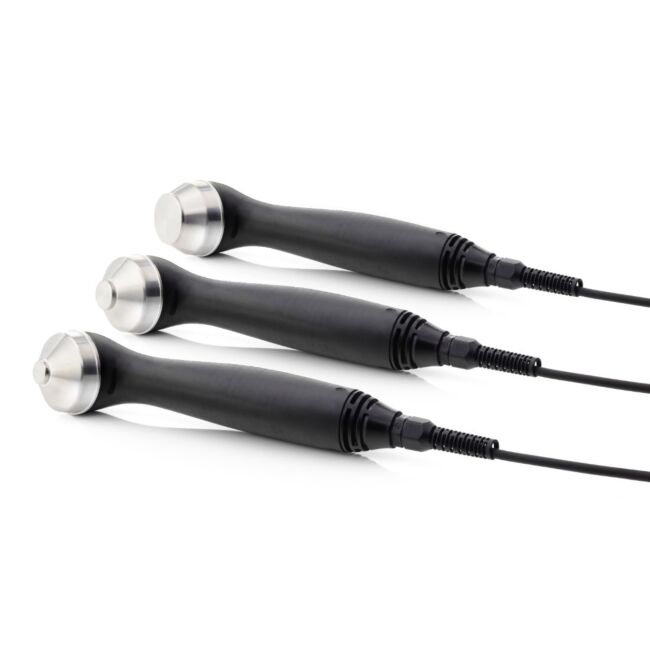

Chattanooga Intelect Mobile 2 Ultrasound Heads

Name: Chattanooga Intelect Mobile 2 Ultrasound Heads
SKU: UT071G
Price: 275 GBP
Availability: InStock

Replacement Treatment Heads for the Chattanooga Intelect Mobile 2 Ultrasound.

These heads will only work with the Intelect Mobile 2 Ultrasound Unit, Combination Unit and Advanced Therapy System.

In stock

SKU

UT071G

Grouped product items
Product Name	Qty
1cm² Intelect Mobile 2 Therapy Ultrasound Head £330.00 £275.00
2cm² Intelect Mobile 2 Therapy Ultrasound Head £330.00 £275.00
5cm² Intelect Mobile 2 Therapy Ultrasound Head £330.00 £275.00

Replacement Treatment Heads for the Chattanooga Intelect Mobile 2 Ultrasound.

These heads will only work with the Intelect Mobile 2 Ultrasound Unit, Combination Unit and Advanced Therapy System.

More Information

Technical

Ultrasound Applicator Size	1cm²		2cm²		5cm²
Ultrasound Applicator Size	1MHz	3MHz	1MHz	3MHz	1MHz	3MHz
Effective Radiating Area ERA INTL (cm²)	1	0.9	1.5	1	2.5	2.7
Max Output power in Continuous mode	2W	1.8W	3W	2W	5W	5.4W
Max Output power in Pulsed mode	3W	2.7W(*)	4.5W	3W	7.5W	8.1W
Max Amplitude in Continuous mode	2W/cm²	2W/cm²	2W/cm²	2W/cm²	2W/cm²	2W/cm²
Max Amplitude in Pulsed mode	3W/cm²	3W/cm²	3W/cm²	3W/cm²	3W/cm²	3W/cm²

Country of Manufacture

France
