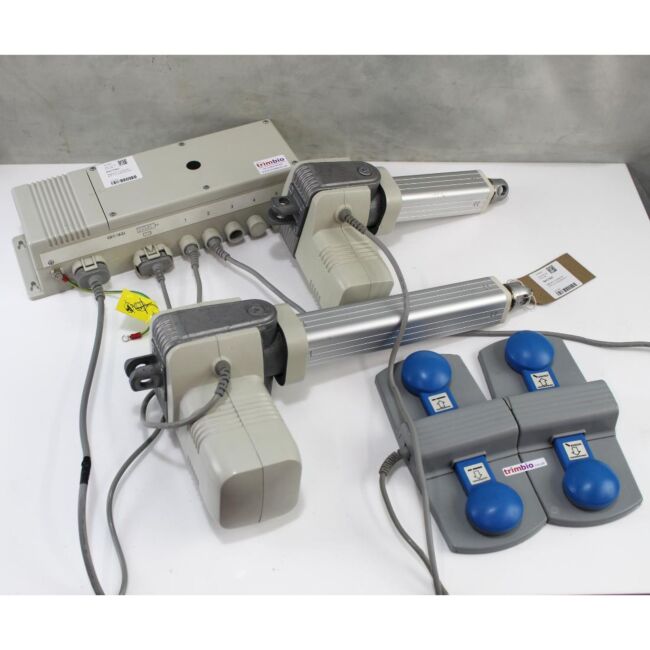

Magnetic 2 Actuator Complete Kit With Control Box & Foot Controller
£238.80
£199.00
Magnetic 2 Actuator Kit With Control Box (Mains / controller locking clamps broken - No battery)
Please note kit does include Foot switch. Note the locking clamps of the mains lead & controller are broken. Note battery is NOT included with this unit. Kit has been taken of an Akron Merit 3222 / 3221 electric medical couch. Main motor is for lifting the couch frame and second motor to lift the head section. Please see images.
Tape repair on mains lead & a tape repair on the foot switch lead. (SEE IMAGES)
Taken From Akron Merit 2 Section Electric Couch With Electric Head Section
Control box (L)36cm x (W)12cm x (H)9cm Weight: 2.2kg
Type: KOM13-110A-024
Nr: L04109838 Swiss Made 24V / 6A
230V 50Hz max 0.8A IP66
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Main Motor / Actuator
Type: Max30-A200415A04200-000
Nr: L0416050524V 5A
Max 8000N Push / 6000N Pull IP66
Hub: 200mm (L)45cm x (W)10cm x (H)19cm
Spigot: 3cm Body: 38cm In Stroke: 42cm Out Stroke: 62cm
Cable length : 30cm Weight: 4kg
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Head Section Motor
Type: max10-B100295A161M0-000
Nr: L03948370 24V 5A IP66
Hub: 100mm Max 2000N Push
Dims: (L)33cm x (W)10cm x (H)16cm
Spigot: 3cm Body: 26cm In Stroke: 30cm Out Stroke: 40cm
Cable length : 1.5 meter Weight: 3kg
Made in Switzerland
Please see images.
Out of stock
SKU
SACT583
Magnetic 2 Actuator Kit With Control Box (Mains / controller locking clamps broken - No battery)
Please note kit does include Foot switch. Note the locking clamps of the mains lead & controller are broken. Note battery is NOT included with this unit. Kit has been taken of an Akron Merit 3222 / 3221 electric medical couch. Main motor is for lifting the couch frame and second motor to lift the head section. Please see images.
Tape repair on mains lead & a tape repair on the foot switch lead. (SEE IMAGES)
Taken From Akron Merit 2 Section Electric Couch With Electric Head Section
Control box (L)36cm x (W)12cm x (H)9cm Weight: 2.2kg
Type: KOM13-110A-024
Nr: L04109838 Swiss Made 24V / 6A
230V 50Hz max 0.8A IP66
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Main Motor / Actuator
Type: Max30-A200415A04200-000
Nr: L0416050524V 5A
Max 8000N Push / 6000N Pull IP66
Hub: 200mm (L)45cm x (W)10cm x (H)19cm
Spigot: 3cm Body: 38cm In Stroke: 42cm Out Stroke: 62cm
Cable length : 30cm Weight: 4kg
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Head Section Motor
Type: max10-B100295A161M0-000
Nr: L03948370 24V 5A IP66
Hub: 100mm Max 2000N Push
Dims: (L)33cm x (W)10cm x (H)16cm
Spigot: 3cm Body: 26cm In Stroke: 30cm Out Stroke: 40cm
Cable length : 1.5 meter Weight: 3kg
Made in Switzerland
Please see images.
| Colour | Grey |
|---|---|
| Net Weight | 10kg |
| Country of Manufacture | Switzerland |
