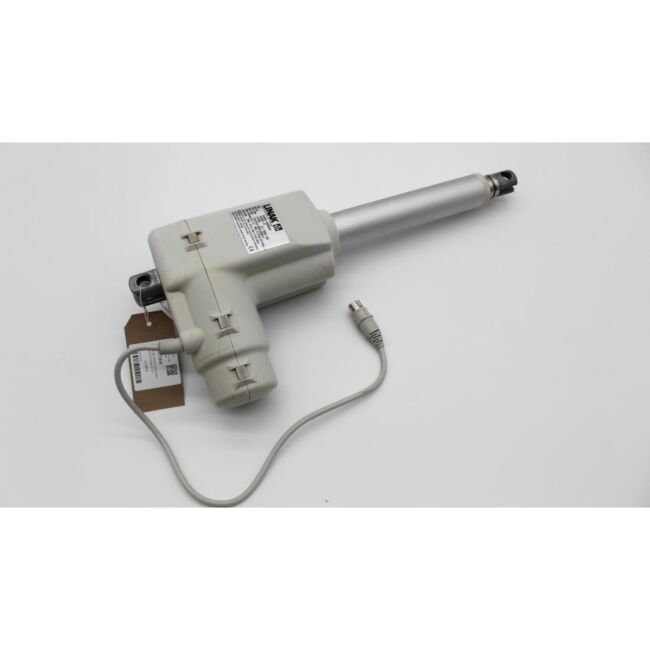

Linak 344200+002002AX 3000N Single Motor

Linak 344200+002002AX
3000N Single Motor
Item No: 340009-01
Production date: 9-2-2001 O.C: 78050-125
Max push / load 3000N / 3000N
Power Rating 24V max 3.5Amp / 3.5amp
Dims: (L)45cm x (W)10cm x (H)19cm
Body: 37cm Spigot: 3cm D: 1.2cm In stroke: 42cm Out Stroke: 62cm
Weight: 4kg Cable length :40cm

Please note minor markings & scratches.

Actuator was tested on a Plinth 502 Series with single mounting bracket.

Does NOT fit the dual mounting bracket (2 holes for the back spigot)
