Masimo Rad-8 Pulse Oximeter SPO2 Finger Monitor - NEW Sensor & NEW Battery

Name: Masimo Rad-8 Pulse Oximeter SPO2 Finger Monitor - NEW Sensor & NEW Battery
SKU: SE8622

Skip to the end of the images gallery

SKU:

Skip to the beginning of the images gallery

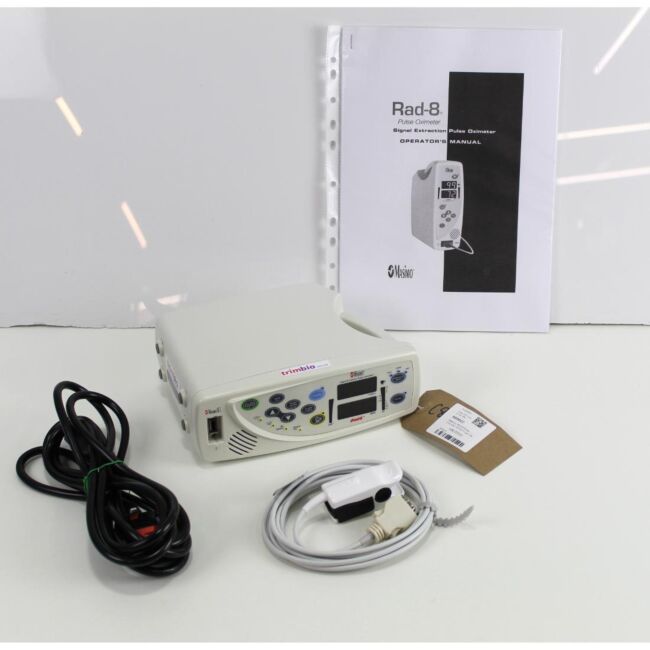

Masimo Rad-8 Pulse Oximeter SPO2 Finger Monitor with NEW Finger Sensor, NEW battery and NEW UK mains lead.

Device operates on both mains or battery.

User Manual can be found in electronic Form (PDF) under downloads TAB.

Fully Serviced & Supplied With 3 Months Warranty. (RTB)

More Details

Print this page

Description

Product Description:

Masimo Rad-8 Pulse Oximeter SPO2 Finger Monitor with NEW Finger Sensor, NEW battery and NEW UK mains lead.

Device operates on both mains or battery.

User Manual can be found in electronic Form (PDF) under downloads TAB.

Fully Serviced & Supplied With 3 Months Warranty. (RTB)

Original Manufacturers details and Specification: (For information only)

Compact design. Unmatched clinical performance.

> Featuring Masimo SET® pulse oximetry, proven accurate during motion and low perfusion in more than 100 independent and objective studies
> The accuracy of Masimo SET pulse oximetry has been shown to reduce false alarms by 95% without missing true clinical events
> Simple, easy to use interface for quick setup and alarm management with one touch programming
> Large LED colour display is easy to read at a distance > Compact, lightweight design is ideal for acute and alternate
care settings including long term care facilities, homecare and sleep labs

Features

> Sleep Mode easily configures systemto perform bedside studies

> 2 second averaging in sleep mode

> Home Mode allows for safe and accurate monitoring and trending at home

> RadNet® and RadLink® interface capability for multi-patient remote monitoring

> Perfusion Index (PI) indicates arterial pulsensignal strength and may be used as a diagnostic tool during low perfusion3

> Low Signal IQ® (SIQ) indicator highlights conditions of low signal quality

> FastSat™ tracks rapid changes in arterial O2 with high fidelity unlike any other pulse oximeter

> APOD™ (Adaptive Probe Off Detection) offers the best probe off detection of Masimo’s three sensitivity modes -APOD,Normal
and MAX sensitivity

> Adjustable averaging 2 to 16 seconds

> Nurse call interface

> Up to 7 hours of internal battery life when fully charged

> 72 hours of trending memory

> Available in horizontal and vertical configurations

> Compatible with Philips Vuelink device interface module

Downloads

User Manual

(Size: 2.4 MB)

Technical Specification

More Information
Colour	White
Technical	performance measurement range SpO2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 – 100% Pulse Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 – 240 (bpm) Perfusion Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.02% – 20% saturation accuracy Saturation accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60% to 80% No Motion2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±4 digits Saturation accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70% to 100% No Motion2 Adults, Infants, Paediatrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±2 digits Neonate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±3 digits Motion4 Adults, Paediatrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±3 digits Neonate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±3 digits Low Perfusion5 Adults, Paediatrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±2 digits Neonate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±3 digits pulse rate accuracy Pulse Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 – 240 bpm No Motion Adults, Paediatrics, Neonate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±3 digits Motion Adults, Paediatrics, Neonate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5 digits Low Perfusion Adults, Paediatrics, Neonate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±3 digits resolution Saturation (%SpO2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1% Pulse Rate (bpm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 bpm electrical AC Power requirements . . . . . . . . . . . . . . . . . . . . . . . . . 100-240 VAC, 47-63 Hz Power consumption......................................... 20 VA Max batteries Handheld Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Sealed lead acid Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . up to 7 hours6 Charging time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 hours environmental Operating Temperature . . . . . . . . . . . . . . . . . . . . . . 41°F to 104°F (5°C to 40°C) Storage Temperature . . . . . . . . . . . . . . . . . . . . -40°F to 158°F (-40°C to 70°C) Operating Humidity......................... 5% to 95%, non-condensing Operating Altitude . . . . . . . . . . . . . . . . . . . . 500 mbar to 1060 mbar pressure -1000 ft to 18,000 ft (-304 m to 5,486 m) physical characteristics dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.2” x 6.0” x 3.0” (20.8 cm x 15.2 cm x 7.6 cm) weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.1 lbs=.908 kg=32oz modes Averaging mode7 . . . . . . . . . . . . . . . . . . . . . . . . . 2, 4, 8,10, 12, 14 or 16 seconds Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . APOD, Normal and Max8 alarms Audible and visual alarms for high and low saturation (1% to 100%), pulse rate (25 - 240 bpm), sensor condition, system failure and low battery Alarm volume . . . . . . . . . . . . . . . . . . . . . . . High: 85dB (min) - Low: 45dB (min) display/Indicators Data display . . . . . . . . . . . . . . . . % SpO2, alarm status, alarm silenced status, AC power, Signal IQ/pleth bar, perfusion index bar, battery status, no sensor, sensor off Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LED compliance Safety Standard for Medical Equipment . . . . . . . . . . IEC 60601-1 2nd Edition UL 60601-1 CAN/CSA C22.2 No. 601-1 JIS 0601-1 Type of Protection . Class 1 (AC power) Internally powered (battery power) Degree of Protection-Patient Cable . . . . . Type BF, Defib Proof-Applied Part Rad-8 Mode of Operation....................................Continuous EMC Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN60601-1-2, Class B
Product Dimensions	(L)21cm x (W)15cm x (H)8cm
Net Weight	1.4kg
Country of Manufacture	United States
