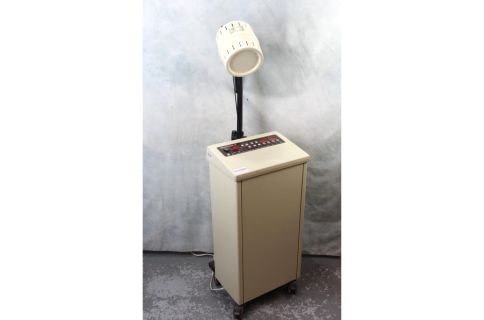

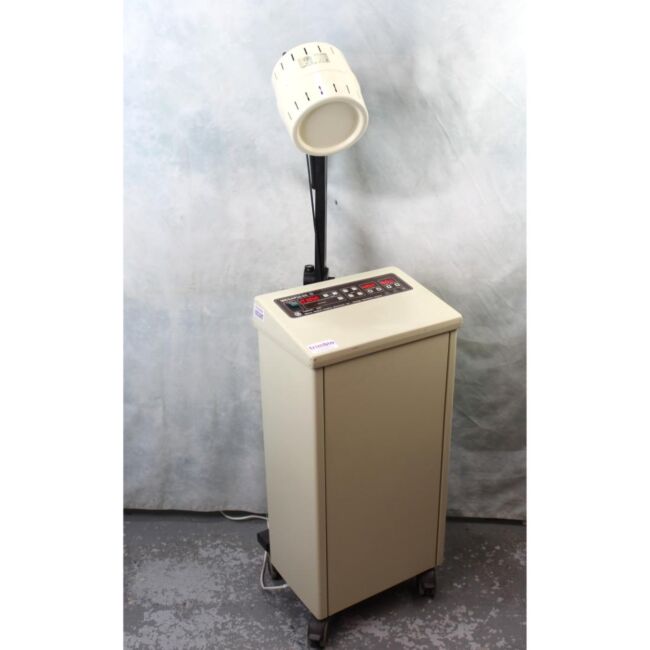

EMS Physio Megapulse II Pulsed Shortwave Diathermy Unit
Reconditioned Megapulse II provides a range of pulsed shortwave outputs through the monopulse applicator.
The unit does not need to contact the patient and has fixed tuning – making it easy to operate.
Also included is a treatment chart with suggested settings based on clinical experience.
- We accept Mastercard, VISA & AMEX
- Finance options available for orders over £1000 + VAT
The Megapulse II provides a range of pulsed shortwave outputs through the monopulse applicator.
The unit does not need to contact the patient and has fixed tuning – making it easy to operate.
Also included is a treatment chart with suggested settings based on clinical experience.
Modes 1t 20 Mins, 100microsecs, 800Hz Fixed, 2t 20 Mins, 200 Microsecs, 800Hz Fixed, 4t 20 Mins, 400 µs, 800Hz Fixed, Var 0-30 Mins, 20-400 µs, 50-800Hz
Pulse Widths 400/200/100/65/40/20 µs
Pulse Repetition Rates 50/100/200/400/600/800
Timer 0-29 Minutes Timer Accuracy +/- 1 Sec
Device comes with U.K. Mains lead & user manual.
Fully serviced & Supplied with 3 months Warranty. (Terms & Conditions Apply).
Please note minor scuffs on the casing of the unit which do not interfere with the operation.
User Manual Can Be Found In Electronic Form(PDF) Under Downloads TAB.
| Colour | Beige |
|---|---|
| Technical | Mains Supply: 100-240 Vac, 1kVA max, 50/60Hz Frequency: 27.12MHz Output Power: 400W maximum in Continuous Mode 1000W maximum Peak Power in Pulsed Mode Output Modes: Continuous, Pulsed 1 in 3, 2 in 3 and 3 in 3 Classification: Class1, Type BF (EN 60601-1) Pulse Width: 20-400 µs Pulse Frequency: 5-800 Pulses per Second Timer: 0-29 Minutes with termination of output and alarm at end of treatment Tuning: Automatic |
| Product Dimensions | (L)41cm x (W)40cm x (H)87cm |
| Net Weight | 35kg |
| Country of Manufacture | United Kingdom |
