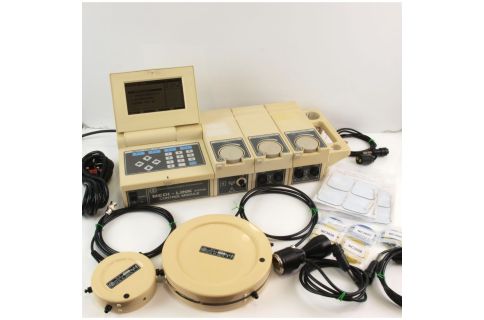

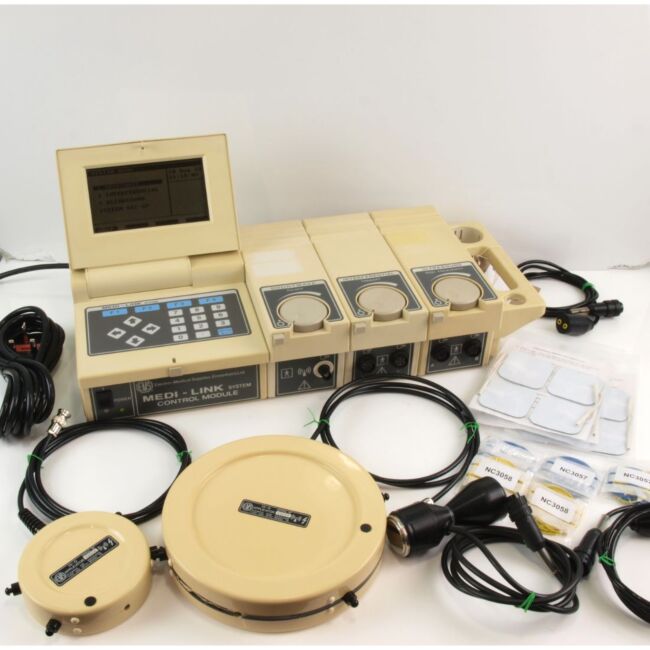

EMS Medilink Model 70 with ultrasound Module 72, Interferential Module 71 & Shortwave Module 78

EMS Medilink Model 70 with ultrasound Module 72, Interferential Module 71 & Shortwave Module 78

Please note a small crack on the casing at the back of the unit which has been sealed.

Please note rattling noise from the control box which does not interfere with the operation of the device.

User manuals can be found in pdf form under downloads TAB.

Ultrasound

1 & 3Mhz on 5cm²  Head.

Continuous or pulsed, (1:2, 1:4 or 1:9 or user defined).

Contact control with light and timer pause.

Memory location to store programs.

Interferential

2 pole and 4 pole

0 -250Hz frequency sweep selection user defined.

1/1 ,6/6 6-6 patterns or user define.

2, or 4Khz carrier wave.

Surge 10/min, 6/min,3/min or user defined.

Vector -fast, slow or user defined.

Memory location to store programs.

Shortwave module &  5W & 10W Heads

User Manual Can be Found under Documents Tab.

Pulse width - 20us, 40us, 65us, 100us, 200us, 400us or user defined.

Frequency - 20Hz, 50Hz, 100Hz, 200Hz, 400Hz, or user defined.

Peak output power 0 - 50W variable into 50Ohms.

Memory locations to store programs.

Device comes with : 5cm^2, ultrasound head,   U.K. mains lead, 4 pole and 2 pole patient leads, 3 packs of self adhesive electrodes, Hi-Q treatment heads 5W & 10W.

Fully serviced and supplied with 3 months warranty. (Terms & conditions apply).
